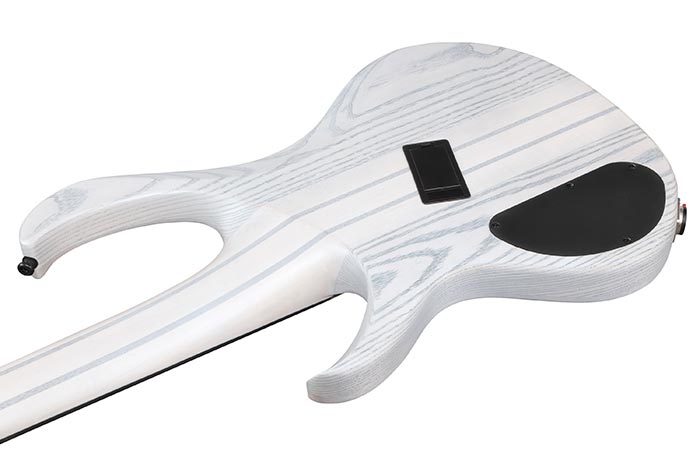

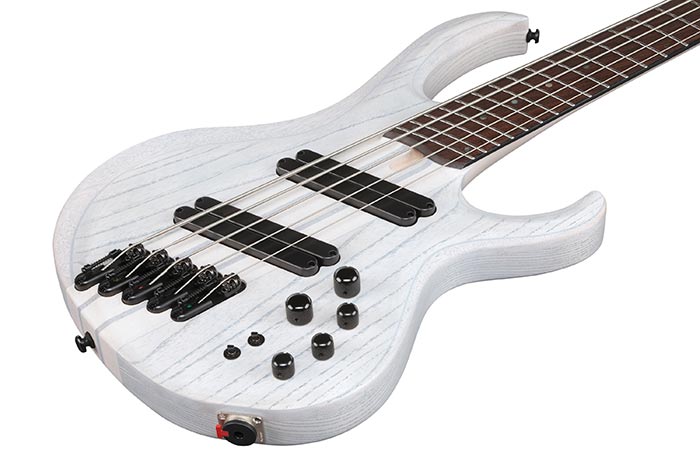

Ibanez Bass 5str BTB865MSTWF

SPECS

• neck type
  BTB5 for Multi Scale5pc Maple/Walnut w/Graphite reinforcement rodsNeck-through
• top/back/body
  Ash topOkoume/Ash wing body
• fretboard
  Bound Panga Panga fretboardAbalone dot inlay
• fret
  Medium Stainless Steel frets
• number of frets
  24 (+ zero fret)
• bridge
  MR5S bridge
• string space
  18mm
• neck pickup
  T1 neck pickupPassive
• bridge pickup
  T1 bridge pickupPassive
• equalizer
  Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch
• factory tuning
  1G,2D,3A,4E,5B
• strings
  D'Addario® NYXL Single Strings (NYXLB045, NYXLB055, NYXLB080, NYXLB100MS, NYXLB130MS)
• string gauge
  .045/.055/.080/.100MS/.130MS
• hardware color
  Black

NECK DIMENSIONS

• • Scale :
    939.8mm/37" - 889mm/35"
  • a : Width
    47mm at NUT
  • b : Width
    75mm at 24F
  • c : Thickness
    20mm at 1F
  • d : Thickness
    22mm at 12F
  • Radius :
    400mmR

•

CONTROLS

FREQUENCY RESPONSE

Ash top / Ash / Okoume wing body

The Ash top imbues this instrument with an exotic appearance and the Ash/Okoume body provides superior attack, bright and solid sound with rich sustain.

Medium Stainless Steel frets

The Stainless Steel frets are durable and long-lasting.

T1 pickups

The T1 pickup is a humbucker featuring two separate, individually mounted coils that provides tight bass response, punchy mid-range, and clear high-end. It offers flexible voicing suitable for various genres, and the height of each coil can be set individually for highly nuanced adjustments to the tone. On top of its great sound, the physical design features rounded edges for enhanced ergonomic comfort when using the pickup as a thumb rest. Moreover, the individually mounted coils allow them to be positioned slightly offset from one another. This makes it so the surface of the pickup where the player rests their thumb is directly parallel with the strings, which is not typical with most multi scale basses. This design greatly enhances the comfort and playability of the instrument.

Neck-through construction

The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.

5pc Maple/Walnut neck with Graphite reinforcement rods

The 5pc Maple/Walnut neck provides tonal clarity and superior attack.The Graphite reinforcement rods provides massive sustain and excellent stability.

MR5S bridge

The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & Mid frequency switch

Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
Precision tonal control, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit.

Panga Panga fretboard

Panga Panga features a beautiful wood grain which produces a tight low and mid range, along with a sharp attack on high end.
