VNR.: OEX-0024-00

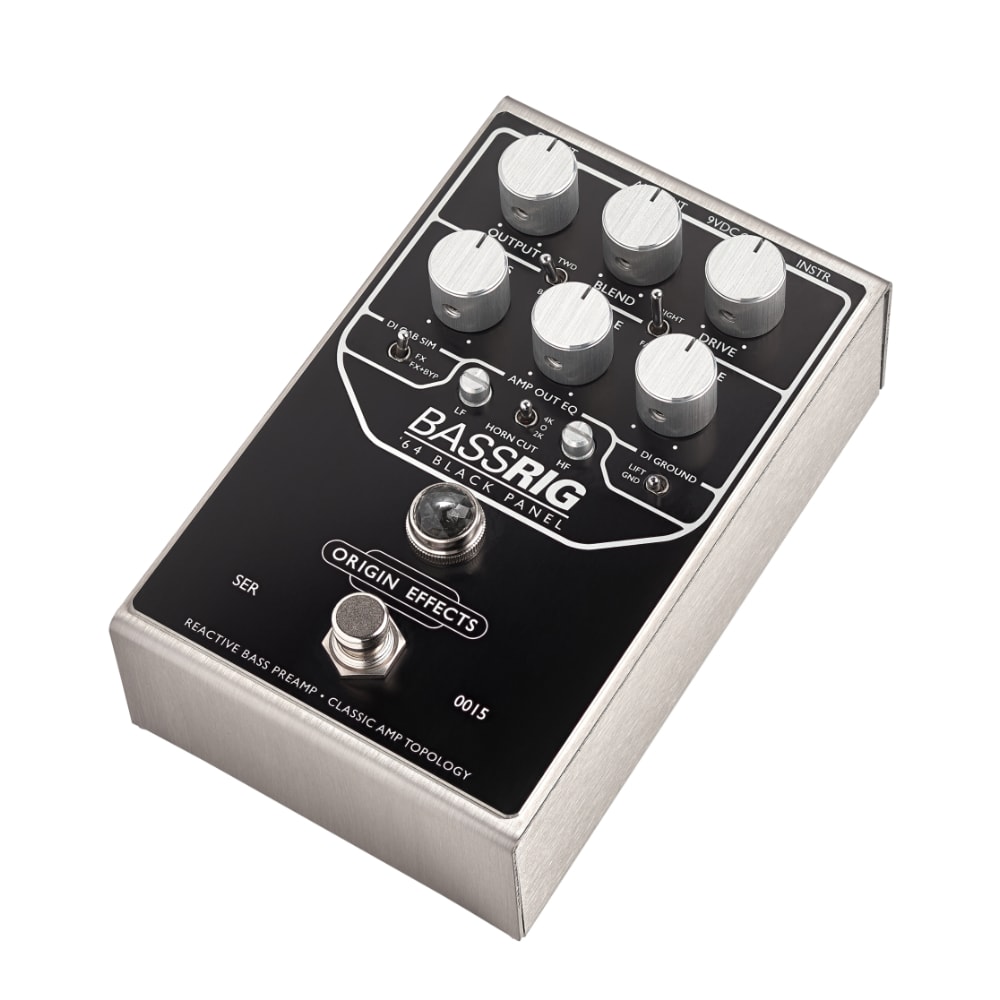

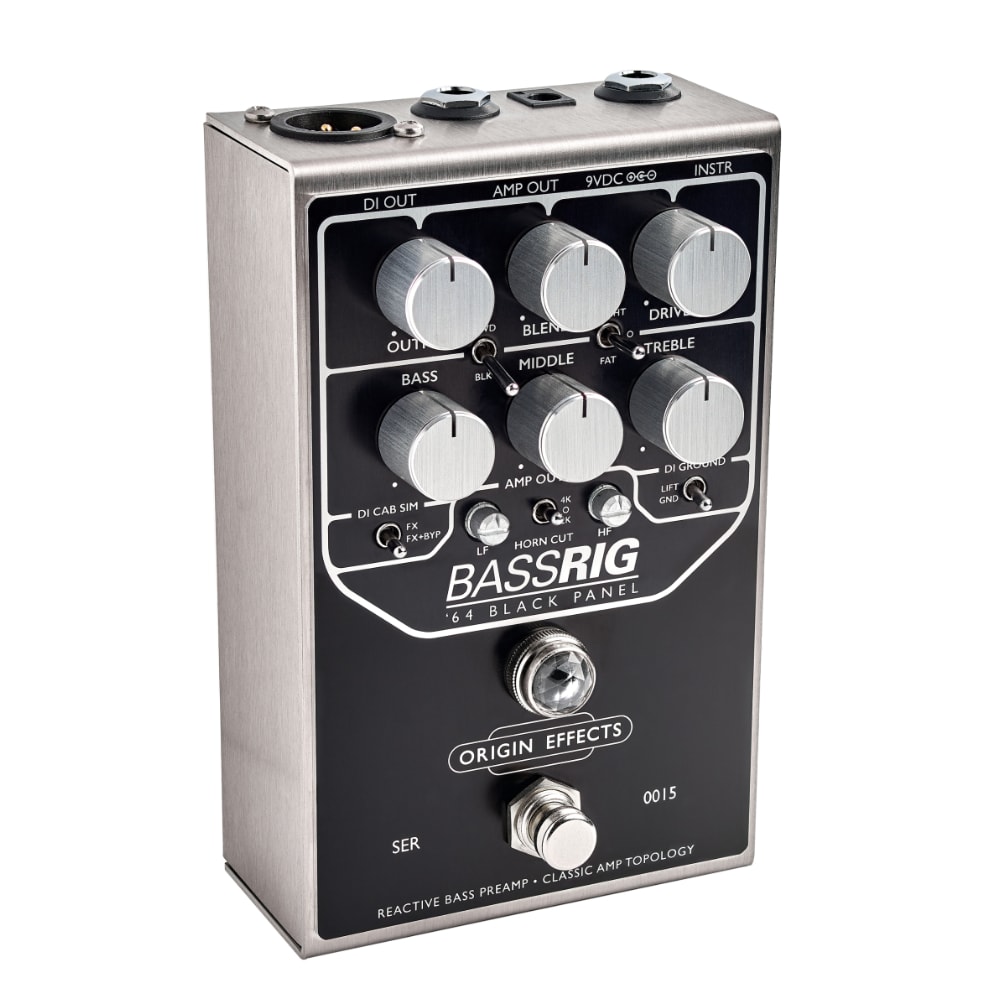

Origin Effects BassRIG 64 Black Panel

Samtals m/vsk
85.990 kr.

The BASSRIG ’64 Black Panel is, quite simply, a complete vintage bass amp in a pedal. Based on Fender®’s Showman® and Bassman® amplifiers, we have used all-analogue circuitry to recreate a complete valve amp-style signal path, along with an all-analogue cabinet simulator, giving you the drive, grit and articulation of these classic amps in one small box.

Back in the days before modern bass amps, achieving high stage volumes with bass guitar was a challenge that required powerful, clean amps. Nobody fills this niche quite like Fender®. Their high-powered amps – designed with guitar and bass in mind – graced countless stages and studios throughout the 1960s. The Showman®, with its 2×15 cabinets, and the later Bassman® models boast an illustrious list of users between them, including Sir Paul McCartney, Crazy Horse’s Billy Talbot and our own personal favourite, Berry Oakley of The Allman Brothers.

In fact, a whole host of Fenders can be heard amplifying the bass on some of the greatest Soul and Rock ‘n’ Roll records of the ‘60s. At Origin Effects, we believe that this boundary-pushing era has given us some of history’s best bass tones.

With XLR and ¼” outputs, the BASSRIG ’64 Black Panel will fit seamlessly into any signal chain, no matter how simple or complex, and our powerful Amp Out EQ tailors your sound to work with any amp, meaning you never have to compromise your clean tone.

Framleiðandi origineffects
Samtals m/vsk
85.990 kr.

Nánari lýsing

FEATURES LIST:

  • Complete valve amp-style signal path with dedicated class-A preamp and push-pull output stage, based on the Fender® Showman® and Bassman®
  • Balanced DI output with analogue cabinet simulator based on an early ‘60s Fender® 2×15 bass cabinet
  • Reactive design simulates interaction between amp and speaker for realistic feel and authentic sound
  • Full range of Fender® bass tones from clean to overdriven
  • Powerful tone-shaping Amp Out EQ
  • Blend control lets you mix your drive sound in parallel with your clean signal
  • Tour-grade, all-metal construction
  • High-impedance, buffered bypass with silent switching
  • Designed and built in England



THE DETAILS:

The BASSRIG ’64 Black Panel uses the same ground-breaking circuitry found in our other Analogue Amp Recreation pedals, replicating the entire signal path of the Showman® and delivers all the tone shaping, drive and character of this historic amp with stunning realism.

The FAT switch takes things into Bassman® territory, replacing the Showman®’s tight low end with a deeper, squishier bass response. For an even dirtier breakup, switching from BLK to TWD harks back to the Tweed era, with thick midrange and raucous overdrive.

We’ve also added a BLEND knob, which mixes in some of your clean signal in parallel with the pedal’s emulated amp circuit. This control can add some subtle, low-end clarity or be used to create massive bi-amp-style overdrive tones.

The balanced DI output on the BASSRIG ’64 Black Panel is equipped with an all-analogue simulation of Fender® ’s 2×15 bass speaker cabinet – essential to the ‘60s Black Panel sound. You can select whether the cabinet simulator is always active or only on when the pedal is engaged, meaning you can use the BASSRIG to add cabinet simulation to other pedals or keep an unaffected DI signal when the pedal is in bypass.

Our proprietary Amp Out EQ lets you tailor the BASSRIG’s ¼” Amp Out, so you never have to compromise your amp settings to flatter the pedal or vice versa. With LF and HF trimmers, as well as a HORN CUT switch, this post-drive filter can fatten up small combos, tame boominess in big cabs prevent harshness with tweeter-equipped rigs. This allows you to match your on-stage sound to your DI signal, balance your clean and overdriven tones or compensate for ever-changing backline amps.

Housed in a hand polished, brushed stainless steel enclosure and furnished with aluminium controls, Neutrik® jack sockets and heavy-duty footswitch, the BASSRIG ’64 Black Panel is equally at home on the road and in the studio.

SPECIFICATIONS

Physical


Weight

846 g (1.86 lb)


Dimensions

146 × 93 × 65 mm (5.74 x 3.6 x 2.5 in.)

L x W x H - Includes knobs and switches

Electrical


Input Impedance

1 MΩ


Output Impedance

500 Ω


Current Draw

150 mA

Power


Power Supply

9V DC 2.1 mm centre-negative

Please note: the BASSRIG is powered by a mains adaptor only (not included). We’ve dispensed with the usual 9V battery option, both to save space and to allow us to adopt a high-current approach, yielding lower noise levels and superior tone.

Origin Effects pedals are designed to deliver impeccable performance using a range of power supplies. We recommend you only use a regulated power supply specifically designed for guitar pedal applications as power supplies which do not have sufficient internal filtering can result in unwanted noise.

We recommend the following power supplies for use with our pedals:

  • Voodoo Labs Pedal Power series
  • Cioks supplies
  • Truetone 1 Spot Pro series
  • Strymon Zuma

This product should only be operated at 9V. The design employs a voltage doubling circuit to achieve higher internal voltages for improved sonic performance.
