KSR Amplification CERES

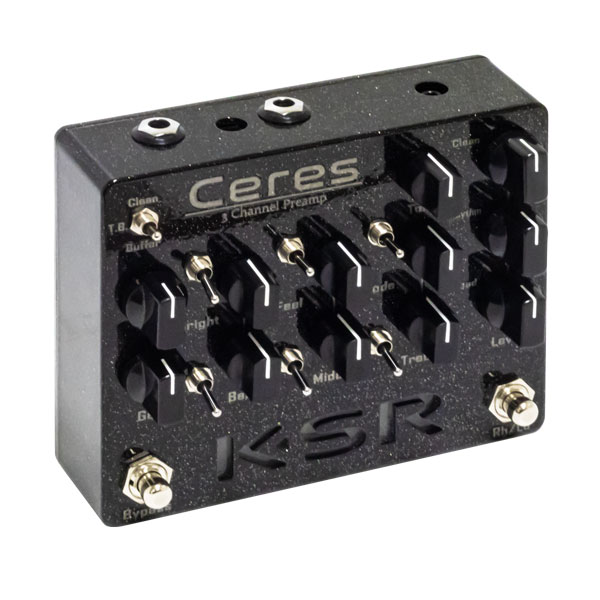

Top mounted jacks allow for easy integration into your existing pedal board. Unique to our pedal operation, we include 3 bypass modes — True Bypass, Buffered Bypass, and Clean Bypass. In True and Buffered bypass the pedal operates as expected, no tonal coloration. The Clean Bypass mode enables the top row of Tone and Volume knobs accessing the Clean channel. These various Bypass Modes allow for integration into any style of rig — from driving a power amp directly (Clean mode), hitting a clean amp down the chain on your pedal board (True Bypass mode), or at the start of your pedal board, driving your other pedals into a clean amp (Buffered mode).

The preferred operating method is to run the Ceres™ into the input of the effects loop return of any amplifier head or directly into a power amp, but it will also work just as well when run into a clean channel with some EQ tweaking.

Time based effects (delay, chorus, flange, etc) should be placed after the Ceres™, before the power amp. A simple loop switcher can even be used to create effects loop(s) between the Ceres™ and power amp.

Controls

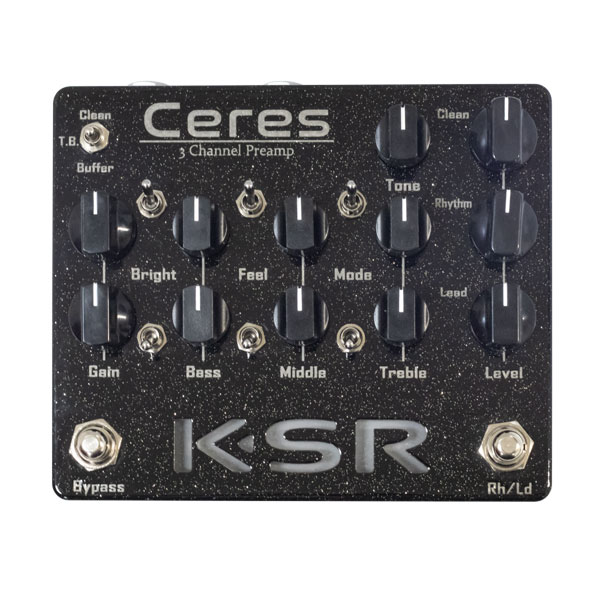

The Ceres™ includes two integrated footswitch buttons to activate the 3 channels. The left button toggles between Bypass and Rhythm/Lead. The right button toggles between Rhythm and Lead. With the Bypass Mode switch set to Clean, bypassing the pedal actually activates the Clean channel.

The gain controls in all channels feature the same range from clean to saturated signals and operate as close as possible to the full size KSR amps. They function without any unwanted top-end artifacts typically associated with solid-state circuits. The Ceres™ EQ options then make for a highly versatile Pre-Amp pedal giving you as much control.

Here is a quick overview of the switch functionality of the pedal, mirroring our signature amplifiers:

Bright:
Up = On, Down = Off. The switch works just like a typical Gain pot bright capacitor in that the lower the Gain setting, the more the effect.

Feel:
Up = Fat, Center = Tight, Down = Thick

Mode:
Up = Ares Crunch, Center = Artemis/Gemini Red Mode, Down = Colossus Lead

Connections

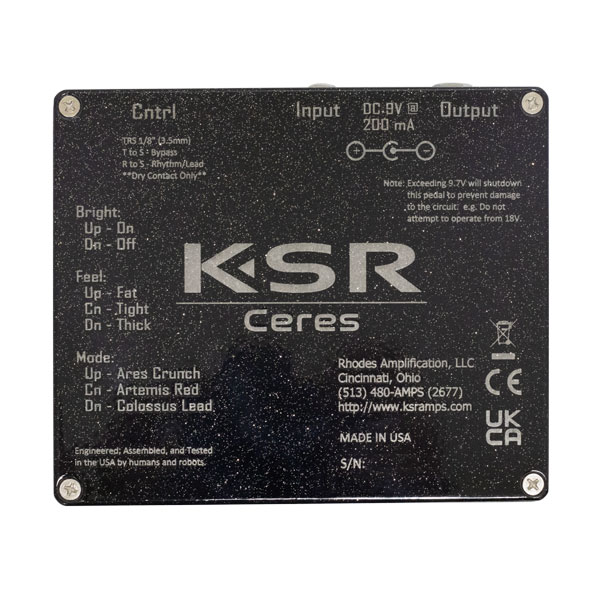

Looking at the front of the pedal, top-right is the external control input, then Guitar Input, 9V DC input, and finally Output to amp.

The 9V DC input requires at most 200 mA to function. This is accessible via the high-current output of a Voodoo Labs Pedal Power, or similar. Please do not exceed 9V as the pedal will shutdown to protect the internal electronics. We generate optimal voltages internally, so providing more than 9V is simply not necessary, or possible.

The Control port is a 3.5mm (1/8″ headphone) TRS jack that allows control of the pedal channels and future expansion. Simply use an 1/8″ to 1/4″ TRS cable / adapter to connect this to momentary contact closure relays, and you can completely control the pedal, just as you can with the two foot switches.

Manufacturing

We are proudly manufacturing this pedal completely in our Cincinnati facility. CNC machining, powder coating, laser etching, circuit board assembly are all performed under our roof — no outsourcing.
