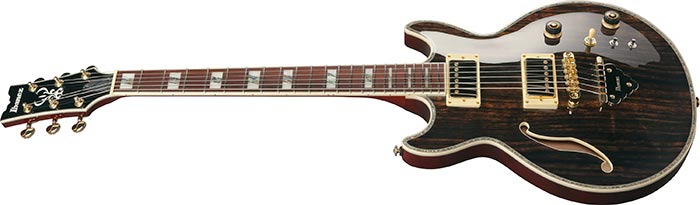

Ibanez El Gtr AR520HMENT

• neck type
• AR3pc Maple neckSet-in neck (smooth heel)

• top/back/body
• Macassar Ebony topOkoume backMaple body

• fretboard
• Bound Jatoba fretboardAcrylic & Abalone block inlay

• fret
• Medium frets

• number of frets
• 22

• bridge
• Gibraltar Performer bridge

• string space
• 10.5mm

• tailpiece
• Quik Change Classic tailpiece

• neck pickup
• Super 58 (H) neck pickupPassive/Alnico

• bridge pickup
• Super 58 (H) bridge pickupPassive/Alnico

• factory tuning
• 1E,2B,3G,4D,5A,6E

• strings
• D'Addario® EXL110

• string gauge
• .010/.013/.017/.026/.036/.046

• hardware color
• Gold

NECK DIMENSIONS

• Scale :
• 628mm/24.75"

• a : Width
• 43mm at NUT

• b : Width
• 56mm at 21F

• c : Thickness
• 20mm at 1F

• d : Thickness
• 22mm at 12F

• Radius :
• 305mmR

SWITCHING SYSTEM

CONTROLS

Features

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

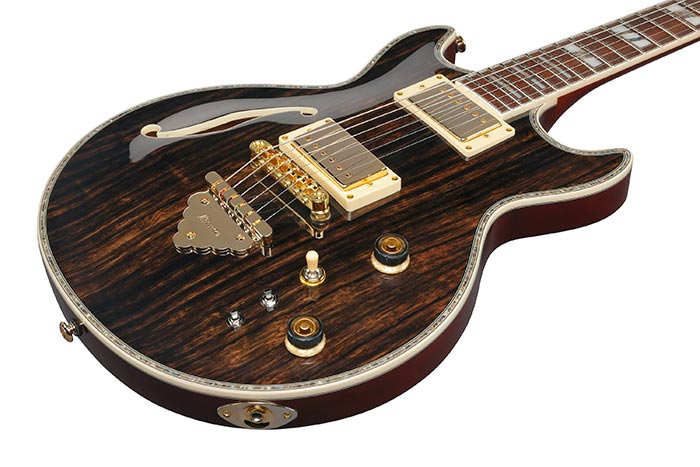

Gibraltar Performer bridge

The Gibraltar Performer bridge provides rich sustain and tuning stability.
The low positioned saddles promise comfortable playability.

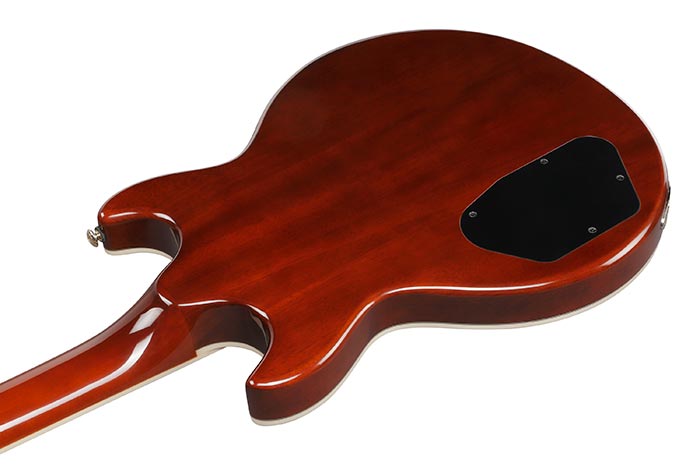

Macassar Ebony top / Okoume back / Maple body

The Macassar Ebony top produces a tight low and mid range with a strong attack in the high end. The Okoume back and Maple top offers a bright and clear sound.

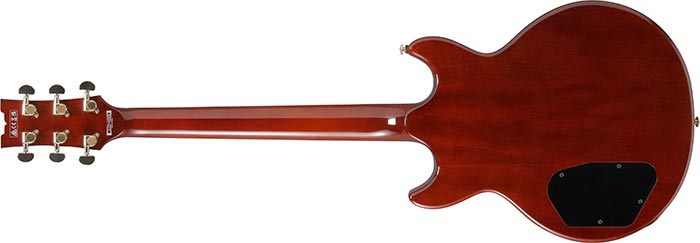

3pc Maple neck

A strong 3pc Maple neck provides an enriched resonance.

2 Tri-sound switches

By giving each humbucker 3 different sounds, Tri-Sound switches expand your guitar's versatility.

Quik Change Classic Tailpiece

The Quik Change Classic tailpiece enables faster and easier string changing.

Super 58 pickups

Super 58 pickups feature moderate output and vintage tone.
