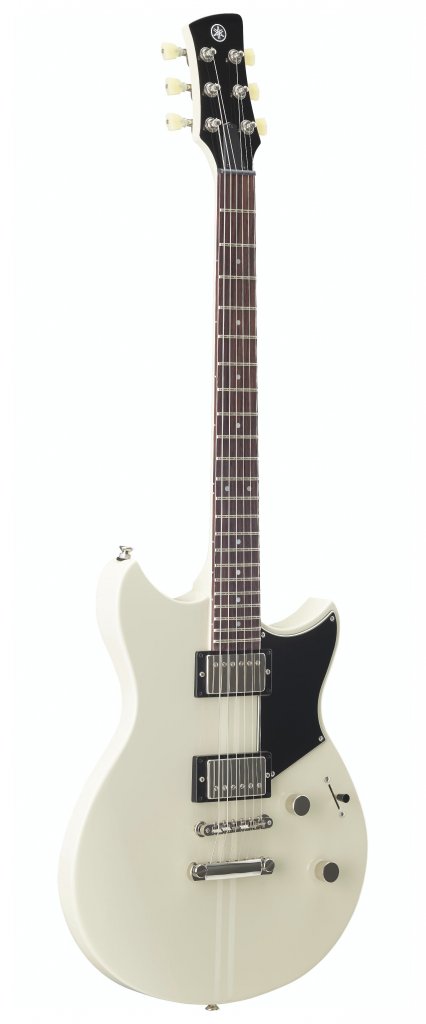

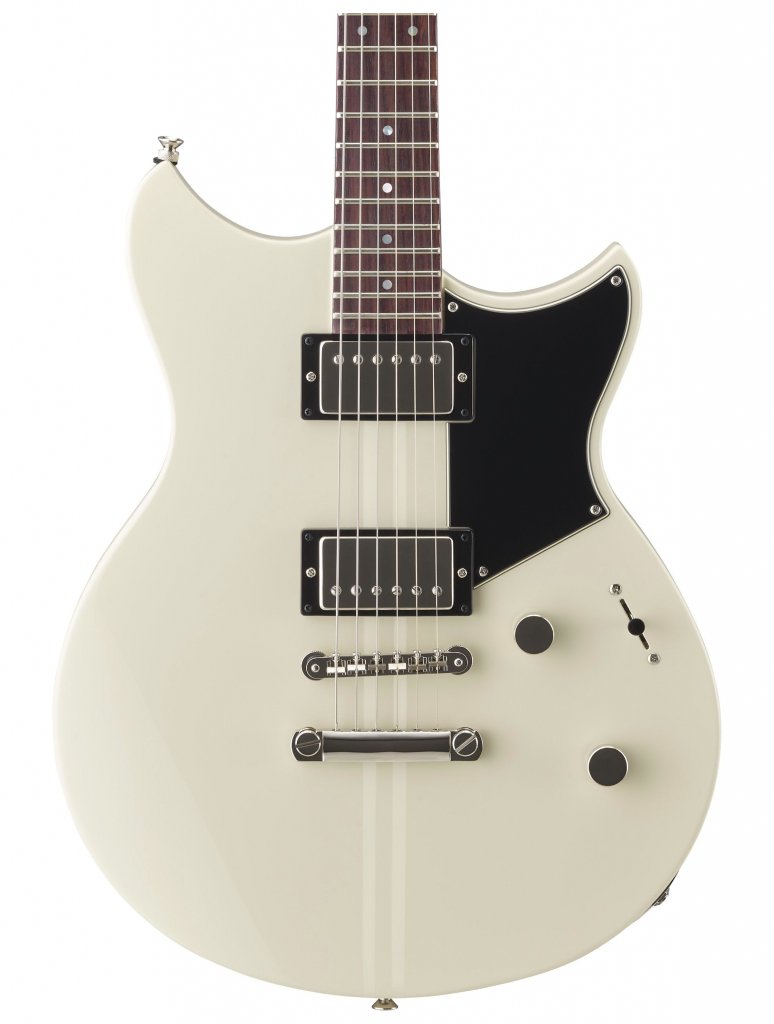

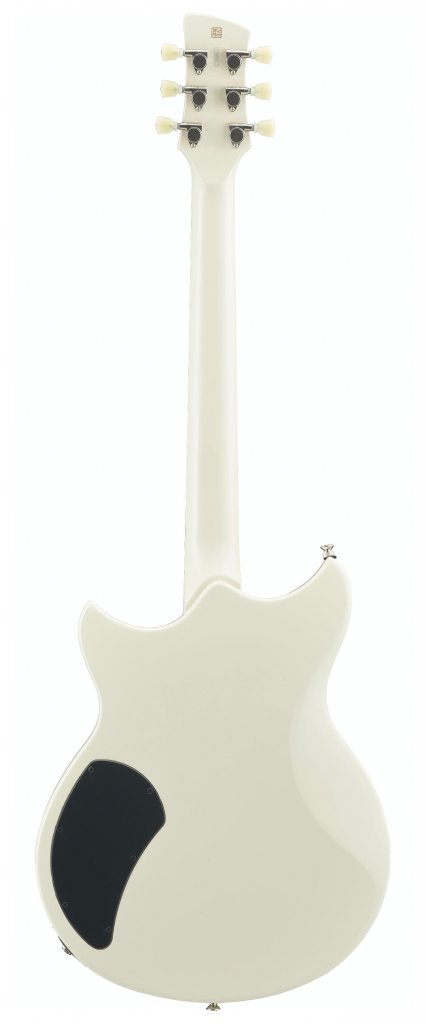

Revstar RSE20 El.Gtr Vint.Wht

The Element is the most accessible electric guitar in the new Revstar lineup. With an aesthetic that's in-keeping with the more expensive models, this makes the Revstar Element one of the coolest-looking instruments in its class — available in a range of gloss racing-style finishes. However, the Revstar Element is unique for its push/pull 'Dry Switch' high-pass filter built into the tone knob — a popular feature carried over from the original Yamaha Revstar.

Key Features

• Chambered Mahogany Body — The innovative chambering pattern was developed using advanced measurement and modelling tools to specifically shape tone and increase resonance while lowering weight.
• 3-Piece Mahogany Neck — Multi-piece design adds strength; improving tuning stability.
• Satin Neck Finish — Provides a slippery, non-sticky feel for fast playability.
• Jumbo Frets — Modern size enhances tone and offers more control.
• Alnico V Humbuckers — Proprietary pickups deliver the punchy sounds you'd expect from humbuckers, with added warmth.
• Push/Pull 'Dry Switch' High-Pass Filter — Provides more prominent highs and tighter bass, without the decreased volume and added hum that comes with conventional coil-splitting.

Specifications

Body

• Body Material: Chambered Mahogany
• Body Finish: Gloss Polyurethane

Neck

• Neck Material: 3-Piece Mahogany
• Neck Finish: Satin Polyurethane
• Scale Length: 24.75" (628.6mm)
• Construction: Set-In
• Fingerboard Material: Rosewood
• Fingerboard Radius: 12" (304.8mm)
• Fret Wire: Jumbo
• Number of Frets: 22
• Nut Material: PPS
• String Spacing: 10.5mm

Electronics

• Neck Pickup: VH3n (Humbucker/Alnico V)
• Bridge Pickup: VH3b (Humbucker/Alnico V)
• Controls: Master Volume, Master Tone (Push-Pull 'Dry Switch')
• Pickup Switch: 3-Position Lever

Hardware

• Bridge: Tune-O-Matic
• Tailpiece: Stopbar
• Tuning Machines: Die-Cast
• Pickguard: 3-Ply
• Strings: Elixir Nanoweb Light (10-46)
