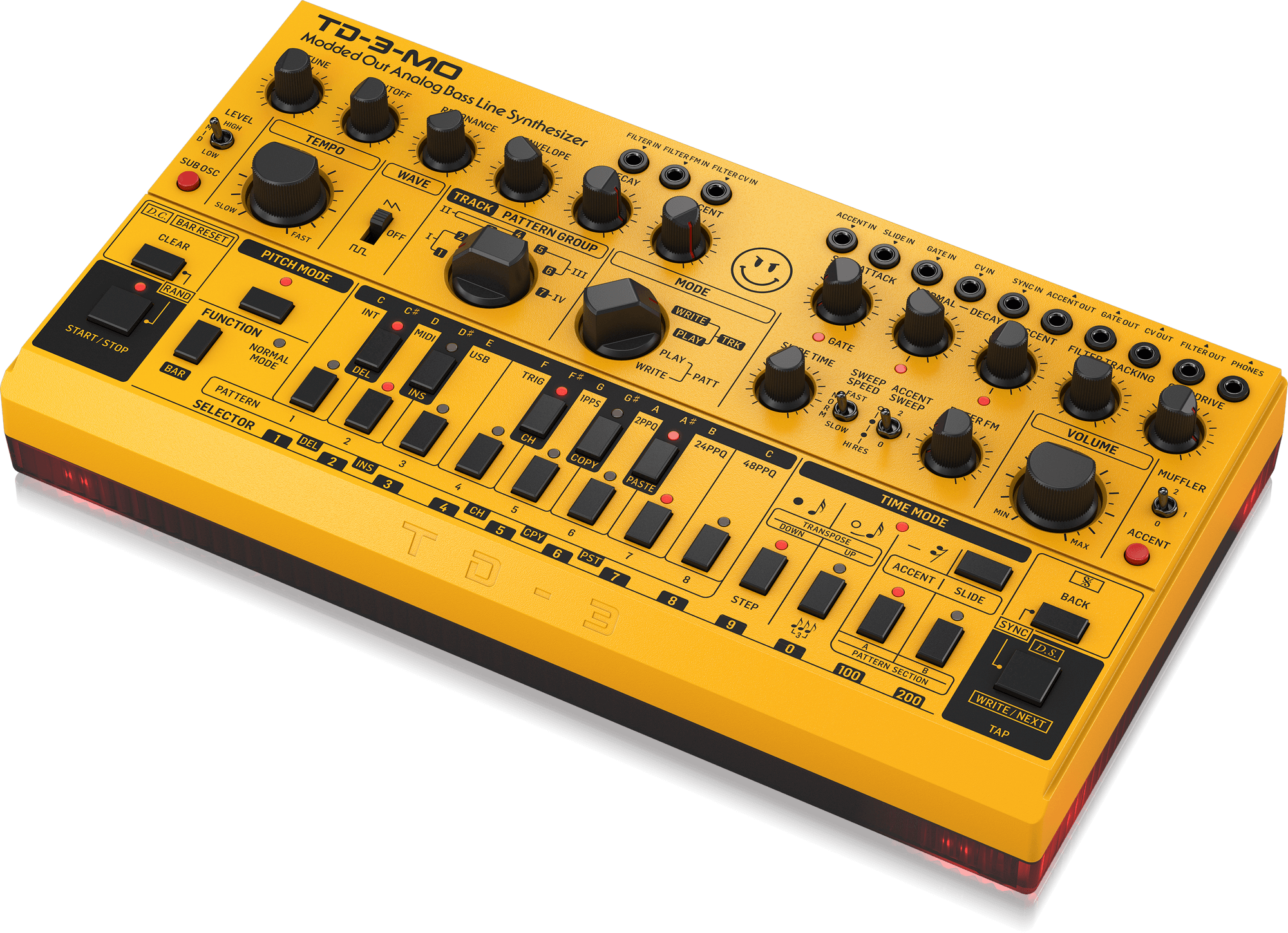

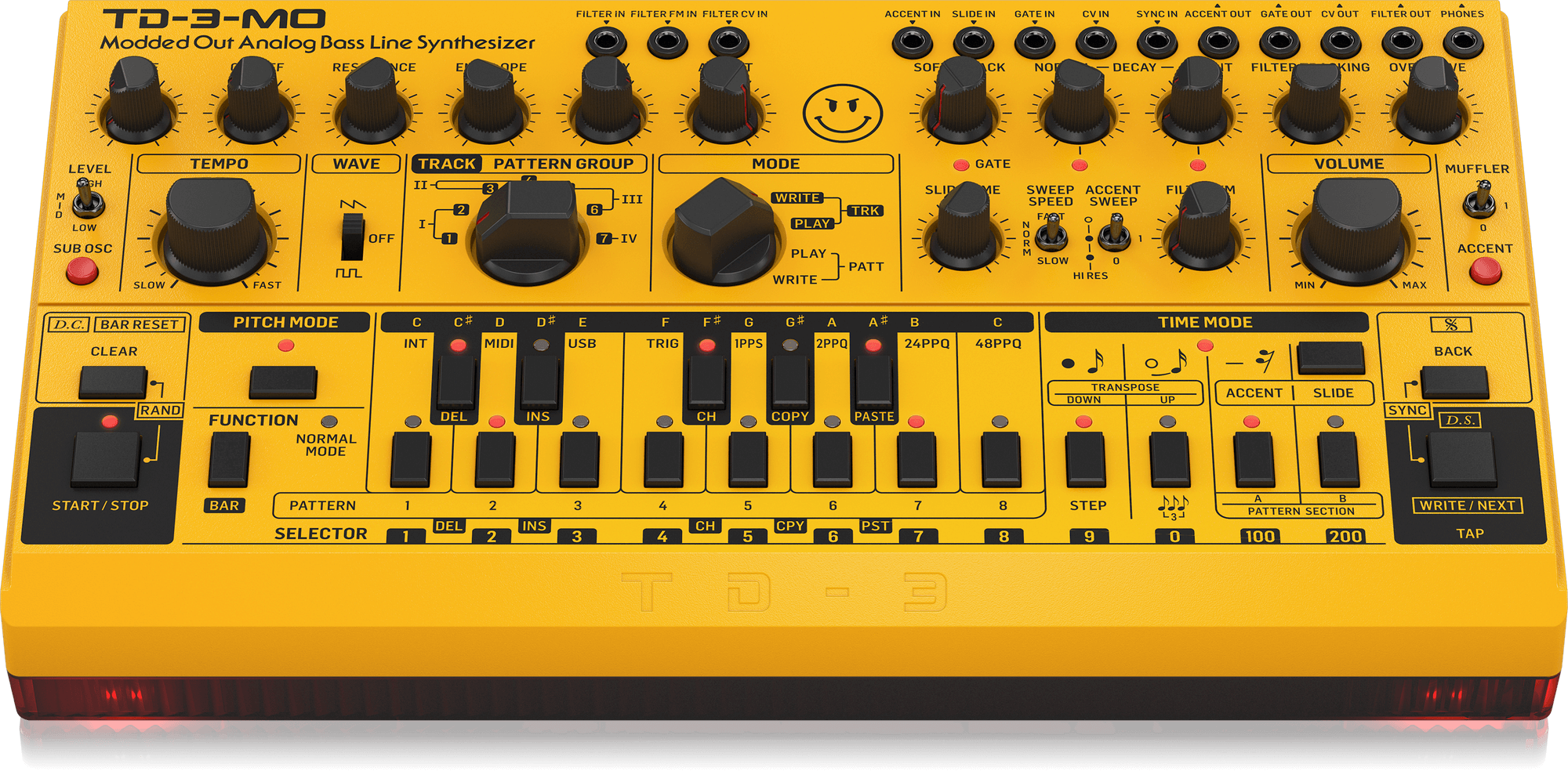

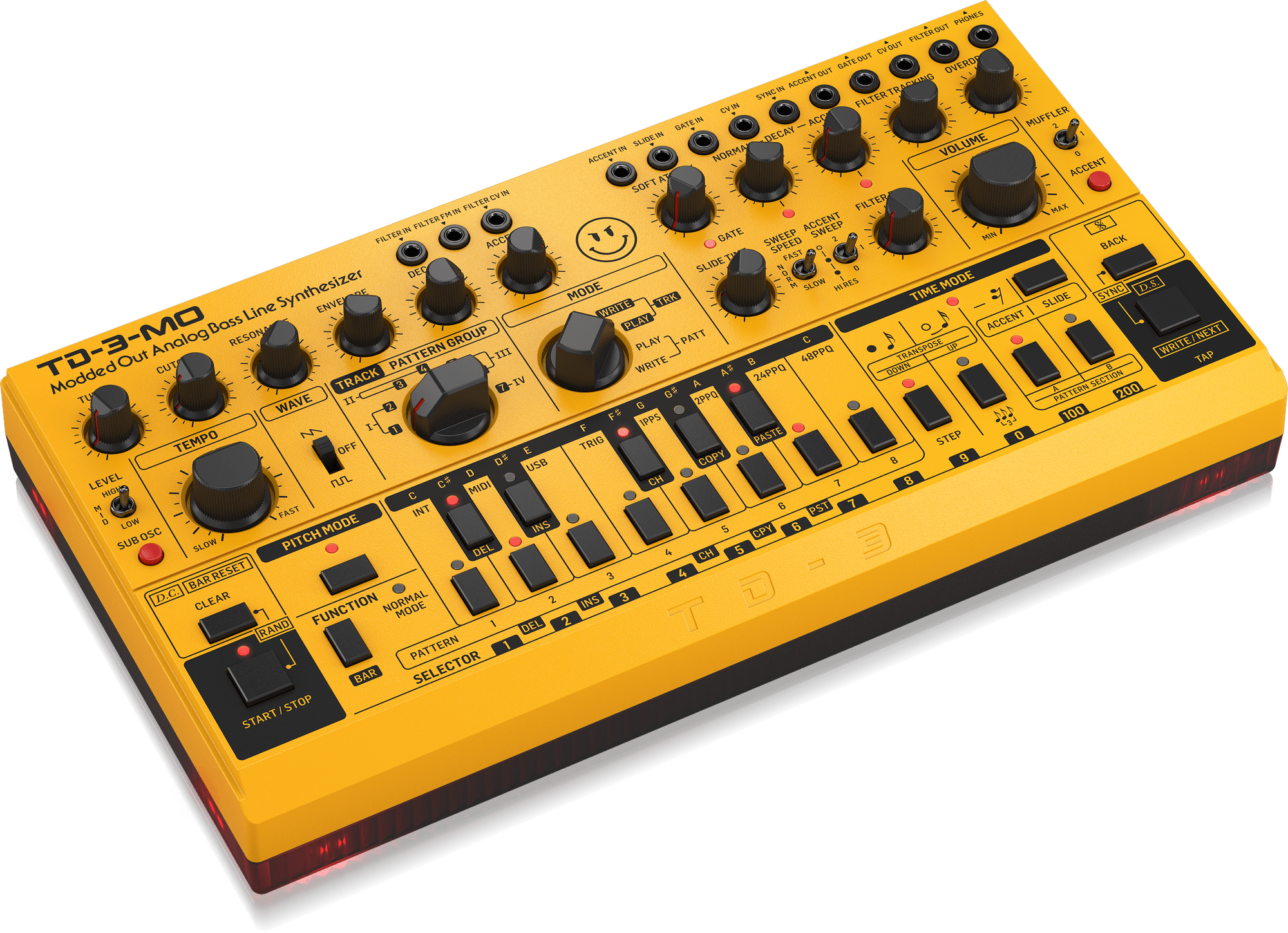

Behringer TD-3 MO-AM Bass linen synth
Sometime after the release of the original TB-303, creative users realized that there was more to squeeze out of an already amazing bass machine, to produce sounds that were unique to themselves. As word started spreading about third-party mods adding more functions and many more ways to shape sounds, synth-heads around the world wanted to get their hands on a modded TB-303. Now it’s a lot easier to get that awesome “modded-out” sound with the Behringer TD-3-MO-AM, an ultra-affordable and faithful homage to the iconic synthesizer that’s capable of creating some fiery basslines and much more.
With its pure analog signal path, 16-step sequencer and authentic VCO, VCF and VCA filters, the TD-3-MO-AM is sure to become one of your favorite synthesizers.
Nánari lýsing
Synthesizer Architecture
| Number of voices |
Monophonic |
| Type |
Analog |
| Oscillators |
1 |
| VCF |
1 low pass |
| Envelopes |
1 |

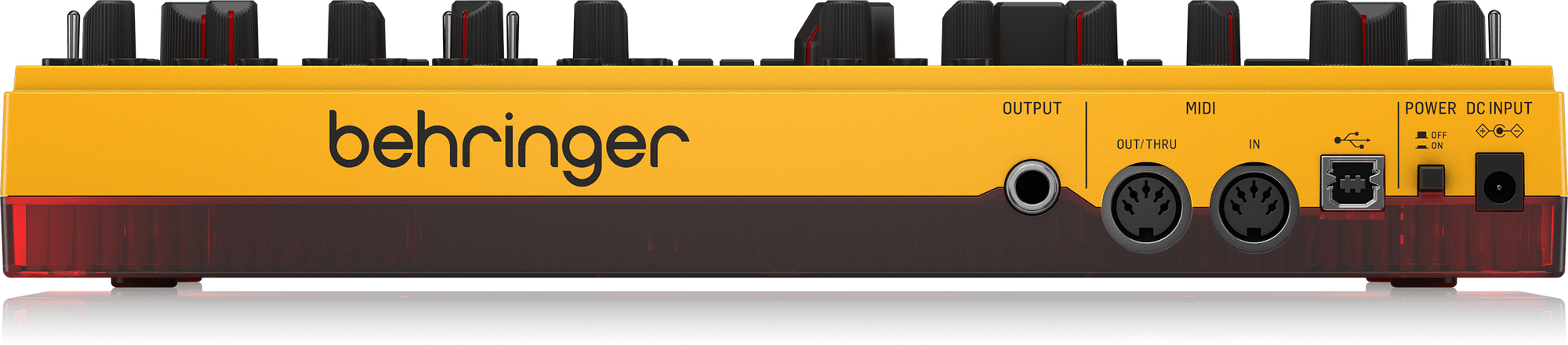

Connectivity
| Power input |
DC input connector |
| Power switch |
Push button on/off |
| MIDI In/Thru |
MIDI In and MIDI Thru, 5-pin DIN |
| USB (MIDI) |
USB 2.0, type B |
| Outputs |
Line output: 1/4" TRS, unbalanced, max. +8 dBu |
| Output impedance |
1.5 k Ω |
| Headphones |
3.5 mm TRS, max. 50 mW/32 Ω (1 KHz, 1% THD) |
| Headphones output impedance |
15 Ω |
USB
| Type |
Class compliant USB 2.0, type B |
| Supported Operating Systems |
Windows 7 or higherMac OS X 10.6.8 or higher |
Inputs and Outputs (TS 3.5 mm)
| Inputs |
|
| Outputs |
|
Power Requirements
| External power adapter (use only the supplied adapter) |
9 VDC 670 mA |
| Power consumption |
4 W max. |
Environmental
| Operating temperature range |
5°C – 40°C (41°F – 104°F) |
Physical
| Dimensions (H x W x D) |
56 x 305 x 165 mm (2.2 x 12 x 6.5") |
| Weight |
0.9 kg (2.0 lbs) |
| Shipping weight |
1.4 kg (3.1 lbs) |
