Nánari lýsing
- Keyboard
- 37 keys (velocity and release-velocity sensitive)
- Sound generating system
- Altered FM sound generator
- Maximum Polyphony
- 64 voices (varies depending on the setting)
- Structure
- .
- 6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
- Algorithm
- 40 presets + user algorithm (unique to each program)
- Operator
- 6 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder, Effect)
- Oscillator waveform
- 23 waveforms (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White, Noise Pink, Noise Blue)
- Filter
- 11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)
- EG
- ADSR
- LFO
- 23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
- V.Patch
- 12 routings
- Effect
- 30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
- Sequencer
- Step Sequencer (up to 16 steps, up to 6 notes per step)
Motion Sequencer (up to 6 lanes)
- Arpeggiator
- 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)
- Number of programs
- 500 (350 preset programs and 150 user programs as the factory-set default)
- FAVORITE
- 64 (16 Slots × 4 Banks)
- Controllers
- MODULATION wheel, PITCH wheel, RATIO OP 1–6 knobs, LEVEL OP 1–6 sliders, DATA ENTRY A–F knobs

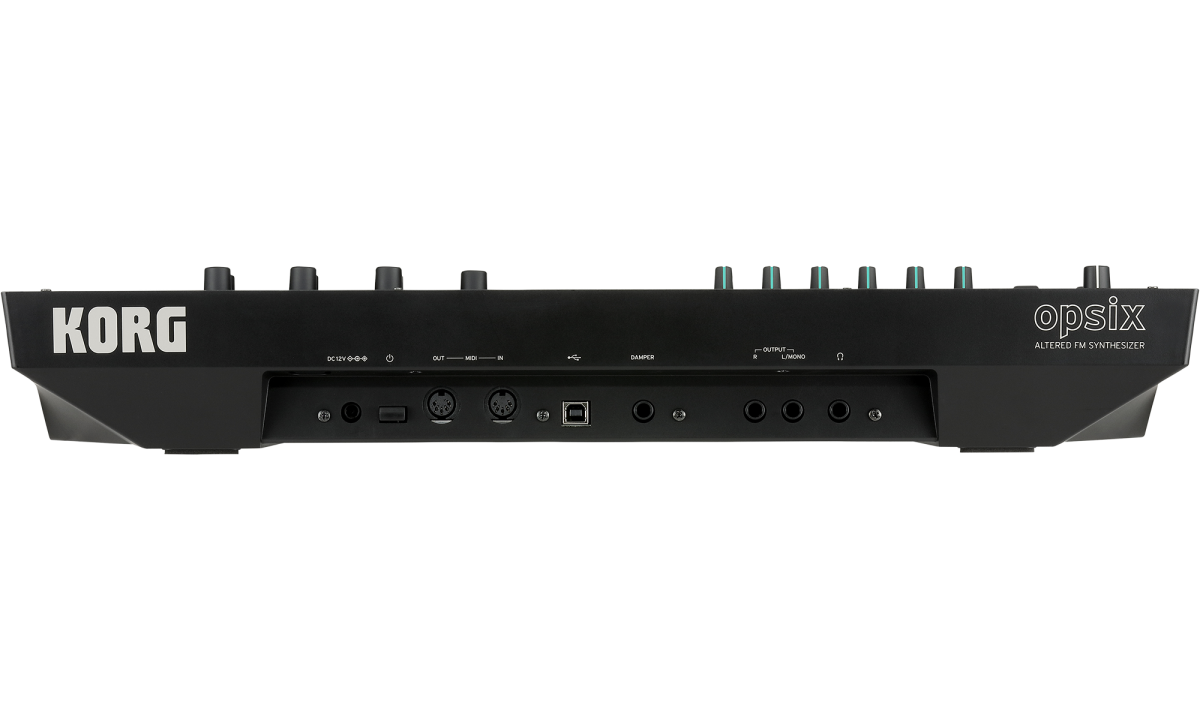

- Inputs/outputs
- Headphone (6.3 mm stereo phone jack)
- OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks)
- DAMPER (6.3 mm phone jack, half-damper not supported)
- MIDI IN and OUT connectors
- USB B port
- Power supply
- AC adapter (DC12V)
- Power consumption
- 5 W
- Dimensions (W × D × H)
- 565 × 338 × 90 mm / 22.24" × 13.31" × 3.54"
- Weight
- 2.9 kg / 6.93 lbs.
- Included items
- AC adapter
- Accessories (sold separately)
- DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch
