VNR.: AUST-OC7

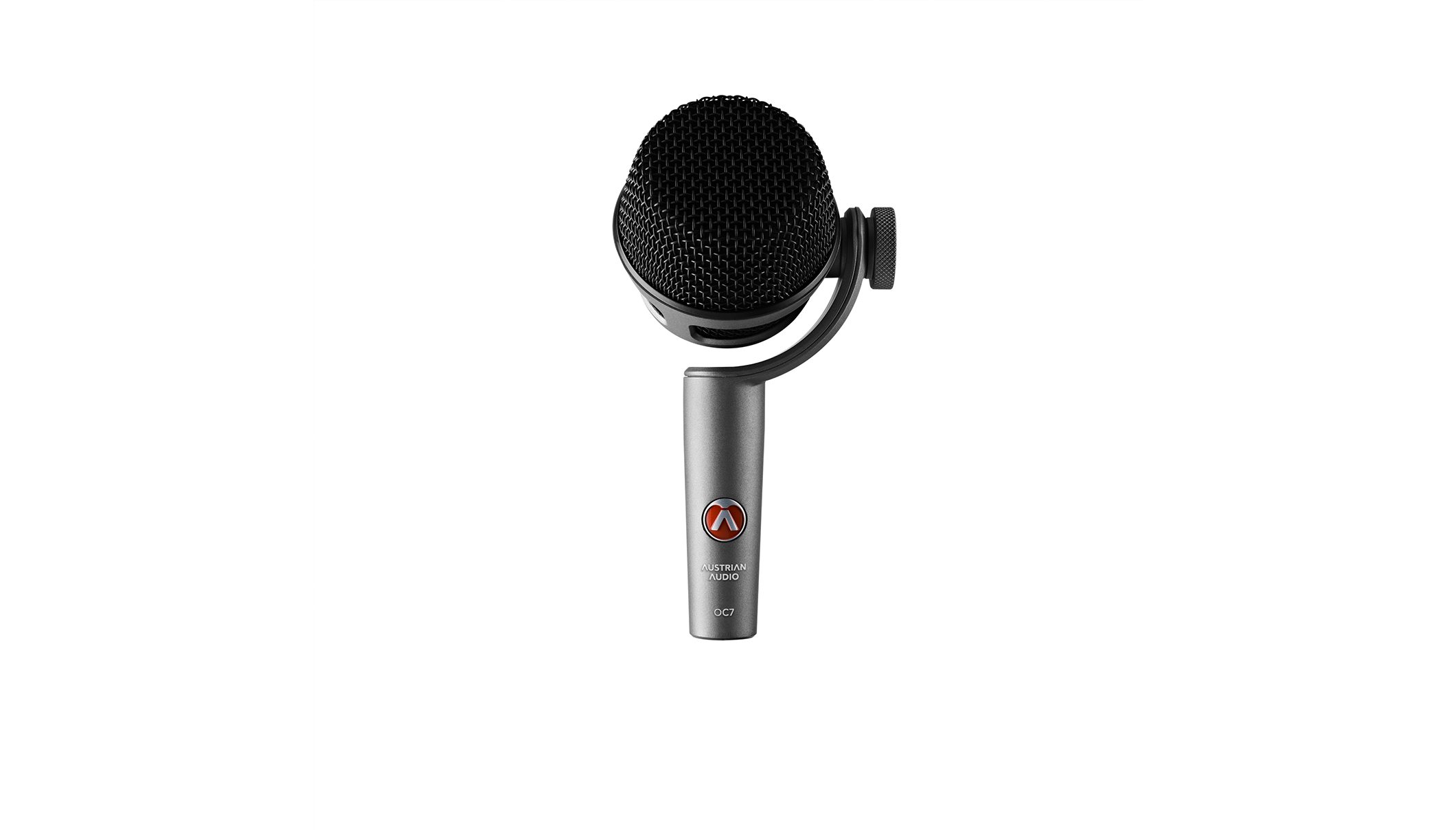

Austrian Audio OC7 hljóðnemi

Samtals m/vsk
64.990 kr.

With the OC7, Austrian Audio releases a true condenser microphone with the popular OC sound, which is specially optimised for use on instruments.

Handmade in Vienna, Austria, each OC7 undergoes rigorous quality control before it is shipped. The heart of the new microphone is the OCC7 small diaphragm capsule, also handmade in Vienna. In-house development and manufacturing results in perfect tuning for the respective recording application.

The most striking feature is the “Swivel Joint” mechanism. To simplify the positioning of the instrument microphone, Austrian Audio’s engineers have developed a suspension of the microphone basket that allows a 220° rotation in the field. This allows the microphone to be precisely aligned to the sound source or according to personal sound preferences without having to awkwardly adjust or loosen the microphone stand.

The open and transparent sound makes the OC7 a very flexible instrument microphone. It is ideally-suited for use on all instruments that have particularly lively transients, including all kinds of percussion instruments including snare drums and toms, piano, acoustic guitar but also string instruments.

Framleiðandi Austrian Audio
Samtals m/vsk
64.990 kr.

Nánari lýsing

Key Features

OCC7 condenser capsule

handmade in Vienna. Again.

Innovative Swivel Joint

allows a 220° rotation of the microphone basket

Rugged die-cast body

ideal for the most challenging live environments

Directional characteristic

High Precision Cardioid Pattern

Switchable high pass filter

40 Hz (2nd order), 80 Hz (2nd order)

Analogue pad

-10dB pad

The heart of the OC7

OCC7 condenser capsule

Making Passion Heard

The OCC7 condenser capsule was developed in Vienna and is the heart of Austrian Audio’s small diaphragm microphone series. Inspired by the legendary CK1, the newly developed capsule takes on the heritage with the benefits of the classic and the demands of today. Shaped by the past, built for the future.

The OCC7 small-diaphragm capsule with true condenser technology, developed and built in Vienna, is the heart of the microphone. The capsule’s three micron thick gold-coated polyethylene naphthalate (pen) diaphragm is much more robust than conventional Mylar alternatives.

The OCC7 has an impressive linear frequency response. The capsule can withstand extremely high sound pressure levels. Combined with very low self-noise, this results in an impressive dynamic range. It always sounds natural and open, and even at extreme volumes it is neither harsh nor sharp. The mids and highs are always silky smooth and are not overemphasised.

Each capsule is hand-built in Vienna and measured and tuned in the in-house anechoic chamber.

Technical Specifications

Directional characteristic:
Cardioid
Frequency range:
20 Hz – 20 kHz
Sensitivity:
10 mV/Pa
Equivalent noise level:
19 dB SPL (A)
HP Filter:
40 Hz (2nd Order), 80 Hz (2nd Order)
Max SPL:
154 dB SPL (>160dB SPL with pad)
Pad:
-10 dB
Impedance:
275 Ω (symmetrisch)
Load impedance:
> 1 kΩ
Supply voltage:
48 V (< 2 mA)
Main Connector:
XLR 3 pin
Dimensions:
147 x 82 x 54 mm
Weight:
275 g
