Nánari lýsing
In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.
Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

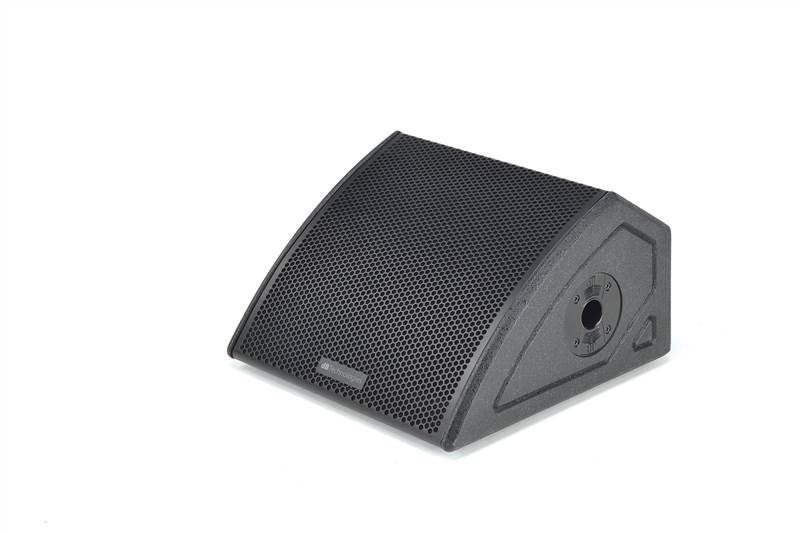

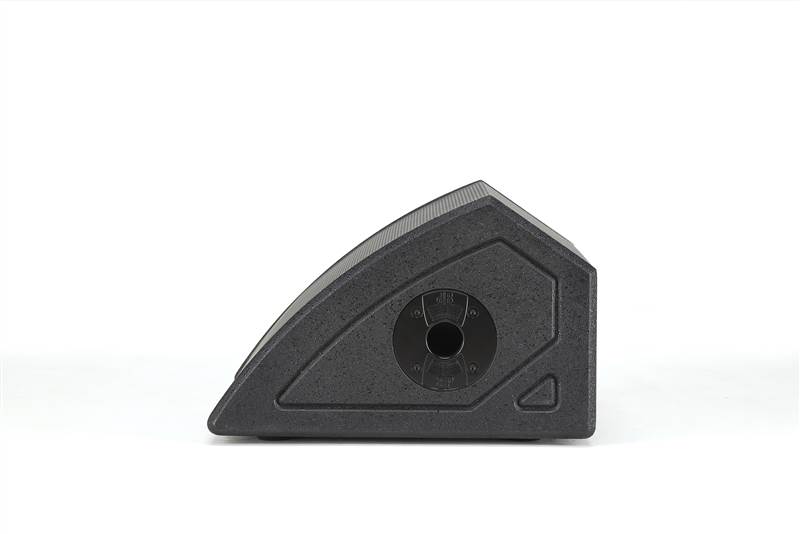

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.
Technical Data
Speaker Type
2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [- 10 dB]
57 - 19.000 Hz
Max SPL
125 dB
HF
1", 1" v.c.
Directivity
60°X90°
Horn
Rotatable
LF
10", 2" v.c.
Amplifier
Amp Class
Class D
Peak Power
800 W
Processor
Controller
DSP 28/56 bit
AD/DA Converter
24 bit/48 kHz
System Presets
8 presets
Limiter
Peak, RMS, Thermal
Advanced DSP Function
FIR Filters
Crossover Frequency
1800 Hz
Slope LF/HF
24 dB/oct
Mechanics
Housing
Plywood
Housing Design
Multifunctional
Handles
1 integrated on bottom side
Pole mount
36 mm
Width
390 mm (15.35 in)
Height
268 mm (10.55 in)
Depth
411 mm (16.18 in)
Weight
11.3 kg (24.9 lbs)
