Yamaha DZR15 hátalari m. magn

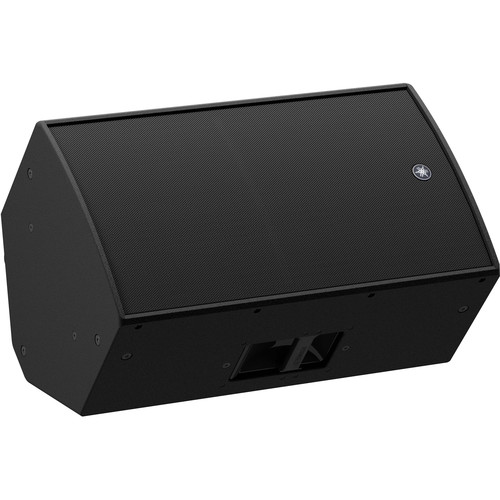

The black Yamaha DZR15 is a 2-way powered loudspeaker designed for main/FOH and floor monitor applications. The 2000W Class-D bi-amp powers the 15" woofer and 2" compression driver, which combine to provide a frequency range of 34 Hz to 20 kHz (-10 dB) with a maximum SPL of 139 dB. The rotatable horn allows for vertical or horizontal mounting to further adapt it to the acoustic dimensions of a venue. The constant directivity horn was designed with the goal of providing smooth, level coverage across the intended coverage area, minimizing roll-off that is common in conventional horn designs.

The on-board 96 kHz DSP processor utilizes Advanced FIR filters for the crossover network and corrective EQ. With the FIR filters, the DZR15 is able to produce a smooth frequency response for remarkable clarity and sound imaging without phase distortion. The onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and adjust PEQ, delay, and routing. The D-CONTOUR is an intelligent multiband compressor that ensures the DZR15's sound stays consistent and clear no matter how hard you drive them. The FOH/Main mode boosts the lower frequencies to compensate for low end that is typically lost when flying speakers, while the Monitor mode is optimized for floor monitoring application by taming problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to deliver the clarity professionals demand from their stage monitors.

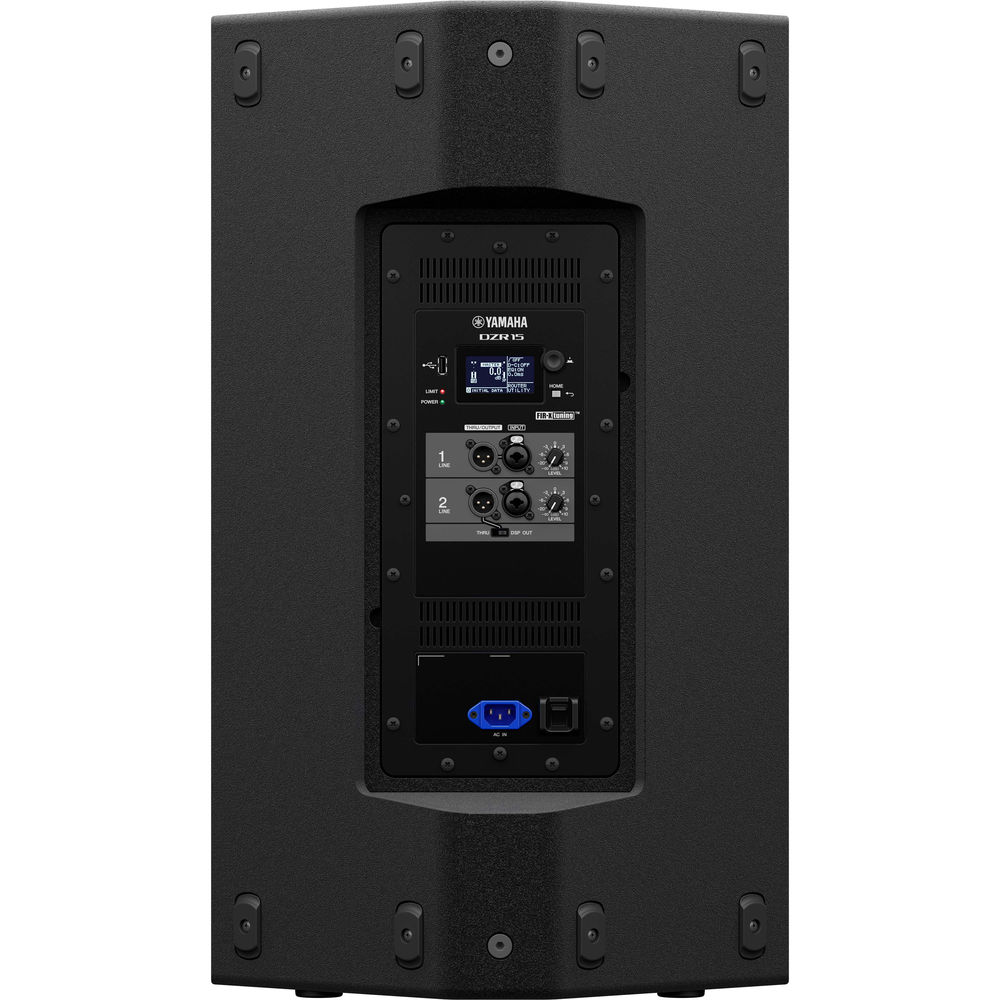

The rear panel offers two combo XLR-1/4" inputs with XLR thru/outputs and dedicated level controls. A USB port allows for system upgrades and preset configuration and backups. The Yamaha DZR15 ships with a standard IEC power cord.

• Equipped with: 2" Tweeter and 15" woofer
• Maximum level: 139 dB
• Frequency range: 34 - 20,000 Hz
• High performance 2,000 W Class-D amplifier module
• 96 kHz DSP and FIR filter for true Hi-Res sound with lowest latency
• Equipped with advanced FIR-X tuning, combination of FIR filtering and the right EQ to minimise phase distortion
• Access to many DSP functions and presets
• Alternatively, precise adjustments of PEQ, delay and routing, etc. are possible via the intuitive LC display
• D-Contour and extremely reliable protection circuits
• Setting for ground monitoring allows mirroring the configuration
• Lightweight but durable wooden housing with premium polyurea coating
• Rotatable horn and various U-mount options (UB-DZR) for flexible setup and positioning
• Dimensions (W x H x D): 450 s 761 (with rubber feet) x 460 mm
• Weight: 25.2 kg
