VNR.: BEHR-XENYX802S

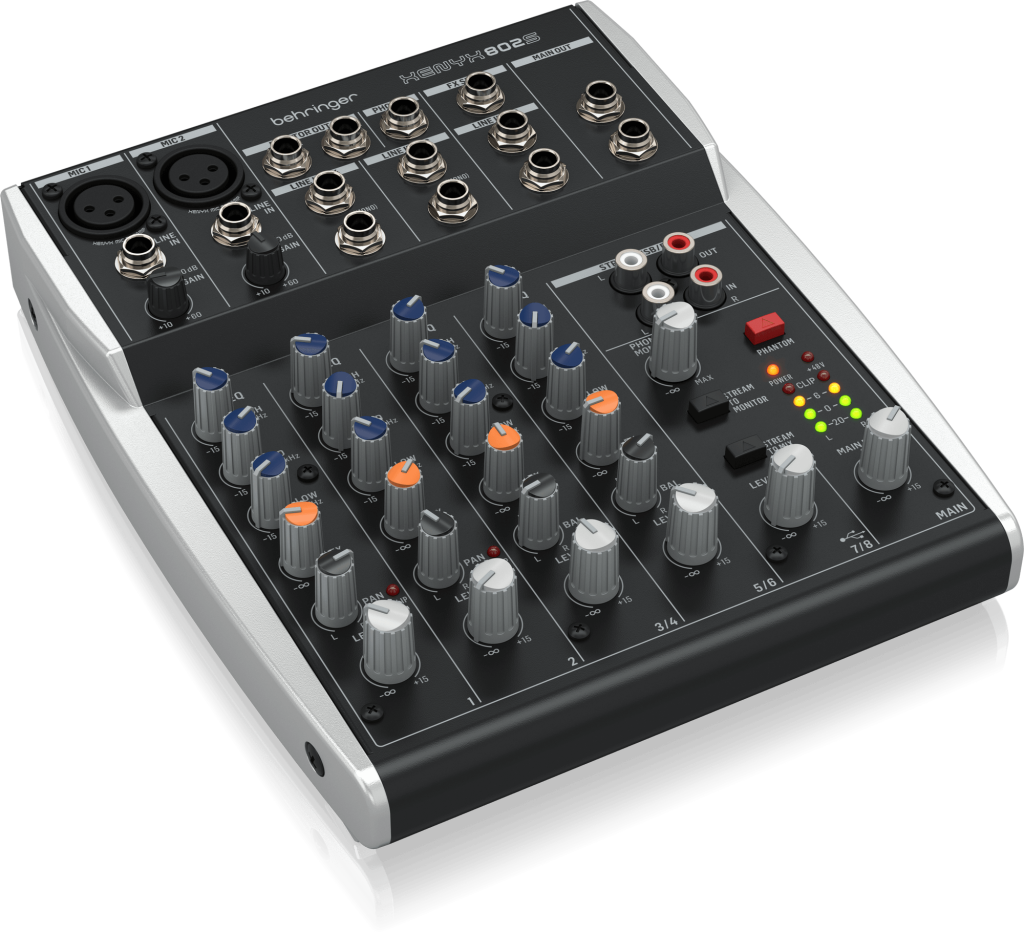

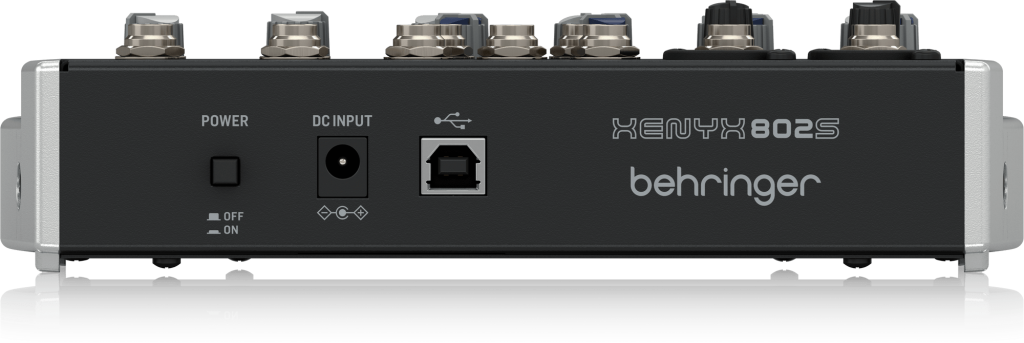

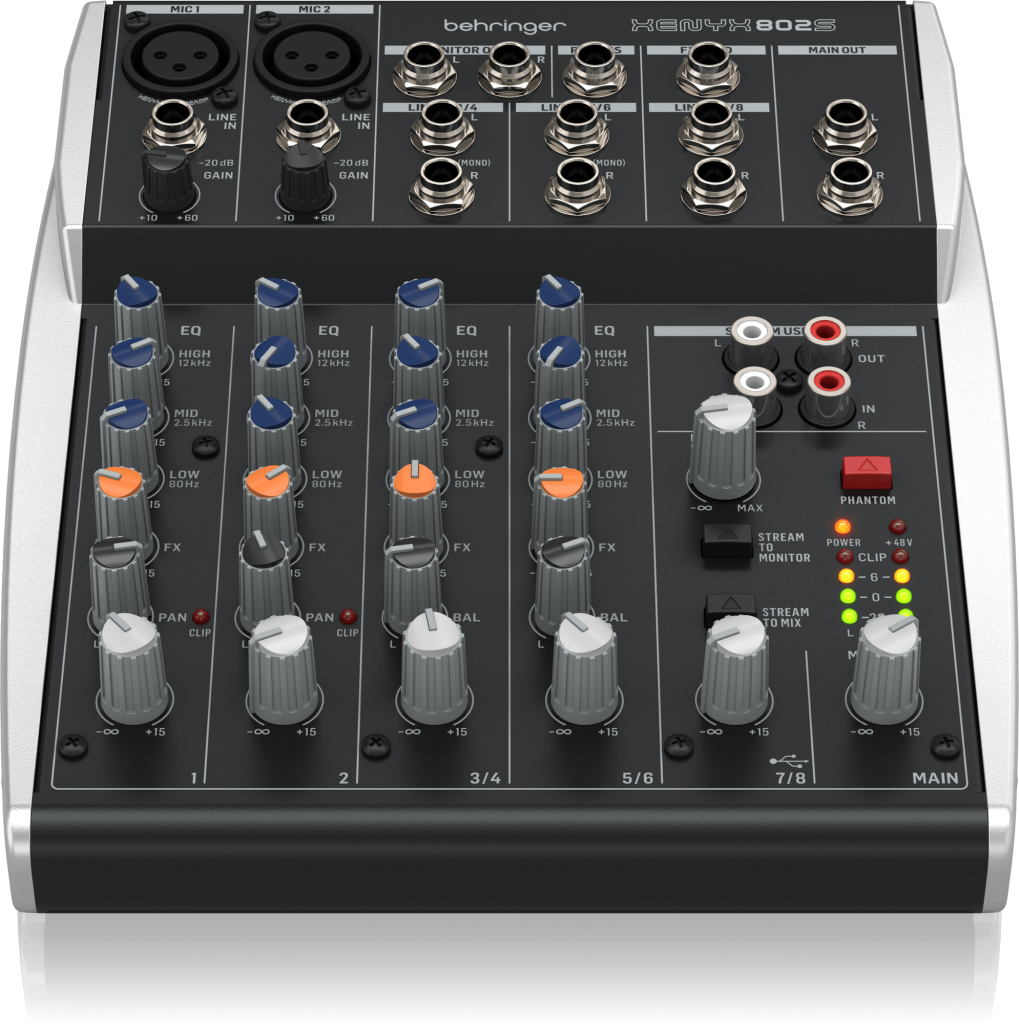

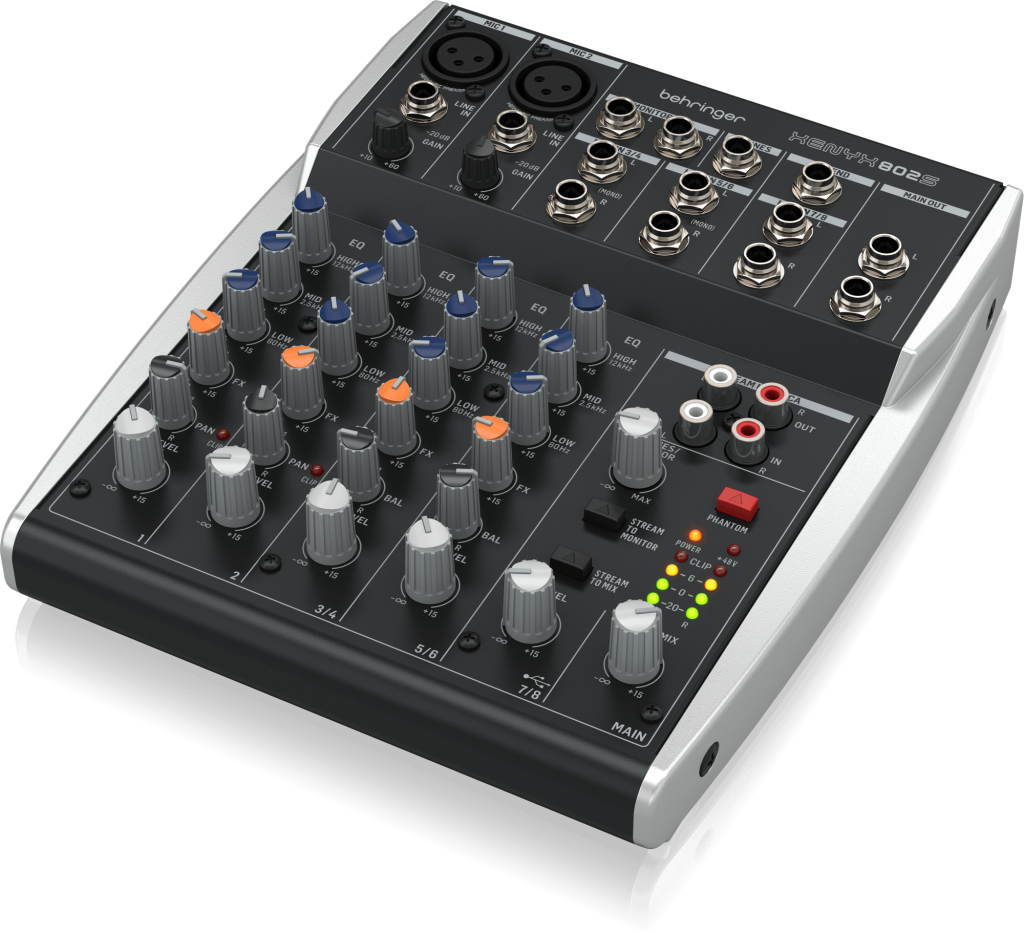

Behringer Xenyx 802s mixer

Samtals m/vsk

17.990 kr.

Premium Analog 8-Input Mixer with USB Streaming Interface

Framleiðandi logichold

Uppselt

Senda fyrirspurn

Samtals m/vsk

17.990 kr.

Nánari lýsing

Product Features

Ultra-low noise analog mixer for streaming, podcasting and recording
2 Award winning XENYX microphone preamps for warm and musical sound
Stereo USB audio interface to connect to your computer or mobile device
Direct mixing of PC/gaming sounds into the streaming output
Analog mixing and equalization for pure sound
Versatile sub mixer for network enabled audio devices
Stereo channel 7/8 automatically switches between TRS input and USB playback
3-band EQs for warm and musical sound
FX send control per channel for external FX processor or monitoring mix
High-quality monitoring, phones and streaming outputs
Stereo RCA inputs assignable to main mix or monitor/phones outputs

XENYX 802S

The compact XENYX 802S mixer’s 8 inputs allow you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting and recording. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamps featuring 48V Phantom Power for hi-end studio microphones.

Great for Any Setup

The new XENYX “S” series can be connected to computers or mobile devices via USB making it super easy to integrate digital sources with analog equipment. Two mono and 2 stereo channels with EQ, plus another stereo channel, a stereo RCA streaming input and stereo USB input allow you to blend a total of 12 crystal-clear audio signals for monitoring via headphones or on high-quality TRS outputs. Hence, the 802S can also be used as a versatile sub mixer for combining network enabled audio devices with several other audio signals.

Control Made Easy

The 802S features a 3-band EQ on Mono and Stereo inputs and allows for precise sound shaping for any input source. An integrated FX send control per channel lets you plug in any external FX processor of your choice, such as the Behringer FX2000, for amazing audio effects flexibility. When nothing is plugged into the stereo line inputs 7/8, then the Level 7/8 control can be used to adjust the USB input level conveniently.

Amazing Gear at an Affordable Price

The XENYX 802S is a great partner for any professional microphone, upgrading your streaming, podcasting or recording setup with a decent microphone input, while simultaneously providing simple, super-convenient control at your fingertips.

Get the XENYX 802S from your local Behringer dealer today!

Specification

Mono Inputs

Microphone Input

Balanced XLR, discrete input circuit

Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted

Frequency response Gain +10 dB: 10 Hz to 150 kHz

Frequency response Gain +60 dB: 20 Hz to 70 kHz

Gain range: +10 dB to +60 dB

Max input level @ +10 dB Gain: +12 dBu

Input Impedance: 2 kΩ balanced

Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%

Mono Line Inputs

1/4" TRS connector balanced

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Gain range: -10 dB to +40 dB

Max input level @ 0 dB Gain: +21 dBu

Stereo Inputs

Stereo Line

1/4" TRS connector balanced

Frequency response: 20 Hz to 200 kHz

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Max input level @ 0 dB Gain: +21 dBu

STREAM Inputs (Analog)

RCA connector unbalanced

Impedance: 10 kΩ unbalanced

Max input level: 10 dBu

EQUALIZER

Low	80 Hz/±15 dB
Mid	2.5 kHz/±15 dB
High	12 kHz/±15 dB

Main, Monitor & FX Send Outputs

Type	1/4" TRS connector impedance-balanced
Impedance	120 Ω
Max output leve	21 dBu

Phones Out

Type	1/4" TRS connector unbalanced
Impedance	23 Ω
Max output level	19 dBu/150 Ω

STREAM out (Analog)

Type	RCA connector unbalanced
Impedance	1 kΩ unbalanced
Max output level	10 dBu

Main Mix noise

Main Mix @ -∞	-109 dBu A-weighted
Channel @ -∞	-109 dBu A-weighted

USB

Type	Type-B connector
USB Audio Data	48 kHz 16 bit
UAC2 Class Compliant	stereo in/out

Power Supply

Power Consumption	12 W
Adaptor input	100 - 240 V~, 50/60 Hz, 0.5 A
Adaptor output	18 V DC 1.0 A
