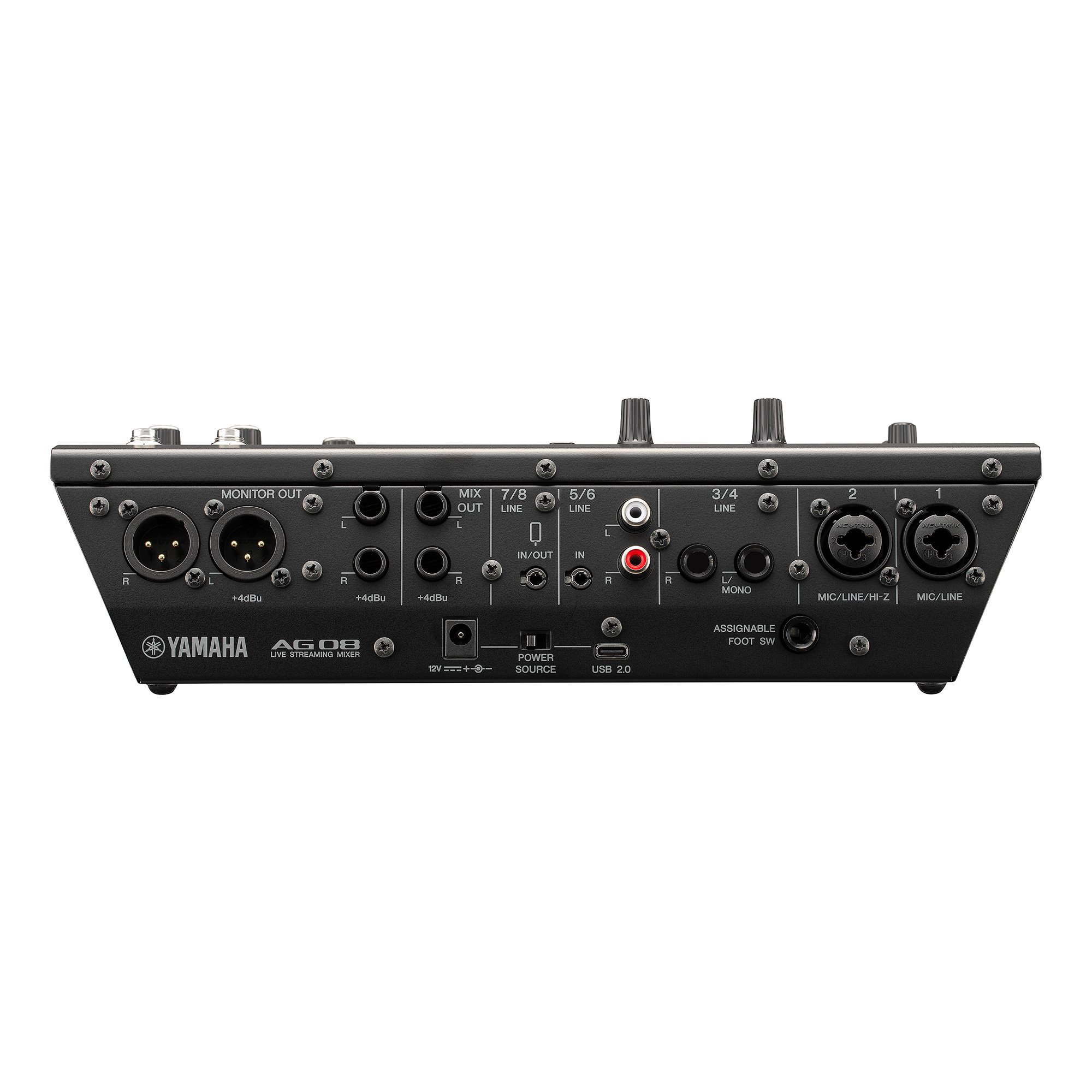

Yamaha AG08 Mixer Black

Three Assignable Faders for Flexible USB IN/OUT

The signal from multiple apps on a USB-connected PC, or analog line inputs can be individually assigned to the faders for Channel 3/4, 5/6, or 7/8 of the AG08, allowing you to intuitively mix the LINE/USB audio signals via physical control of the faders. Conversely, three USB mixed outputs from the AG08 can be individually assigned to various apps on the PC via USB connection.

Combining these functions makes it easy to respond more flexibly in real time, for example sharing optimally mixed audio with chat partners or listeners during live chats and streaming.

What’s more, for ASIO-supported apps such as DAW software, the direct out from each input channel (Channels 1, 2, 3/4, 5/6, and 7/8) and three mixed channels can be used in parallel, enabling multi-channel recording even during live streams.

Five DSP Effects

The AG08 come equipped with high-quality effects to color, correct, or enhance your vocal and musical instrument signals. Grouped into the five categories detailed below, all effects are processed by the onboard DSP, so there is no latency and no impact on PC processing. *Details of each DSP effect can be set in the AG08 Controller app.

Channel 1 features a new voice changer effect that can transform your voice into that of a different gender, a robot, and more, while Channel 2 offers an amp simulator for a more authentic guitar or bass amp sound. These, along with Comp, EQ, Reverb, and the newly added Delay, can be set independently on each channel, allowing you to dial in the optimal setting for each.

Ducker

The Ducker function can be used to automatically attenuate Channels 3/4, 5/6, and 7/8 playback sound relative to audio input from Channels 1 and 2, so you can easily set up a streaming system where Channels 1 and 2 signals are always heard clearly.

Maximizer

Finally, the Maximizer is a simple yet powerful mastering function that can add a level boost to your mix for extra polish and professionalism, as well as attenuating peaking signals to give your listeners and viewers a more comfortable and pleasant audio experience.

Six Sound Pads

The AG08 comes equipped with six customizable sound pads that allow you to easily add sound effects in real time to liven up your broadcasts. Using the “AG08 Controller” dedicated app you can simply drag and drop existing sound files and assign them to the pad of your choice, or record your own samples via the AG08 inputs and trim them to their desired length within the app.
