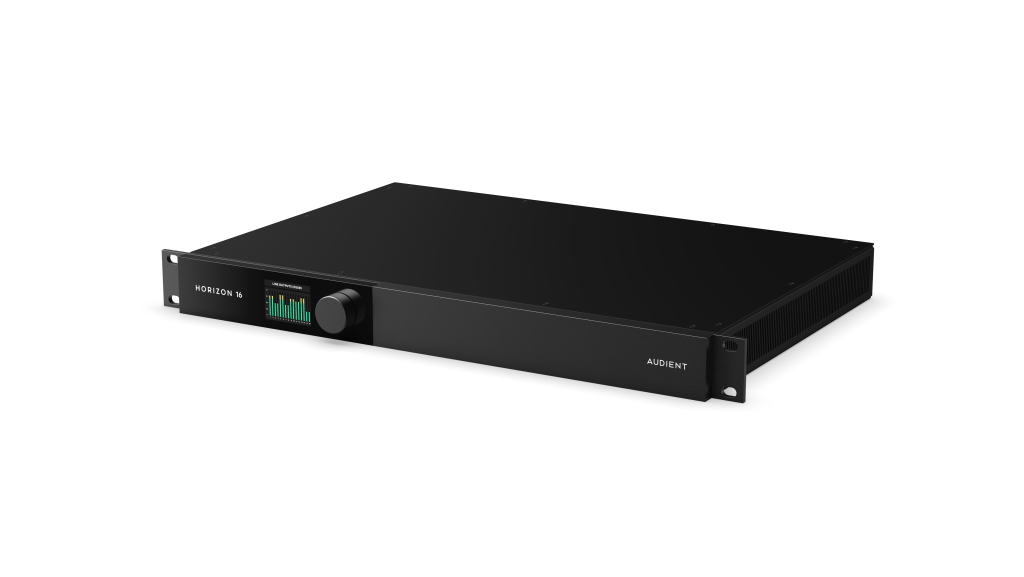

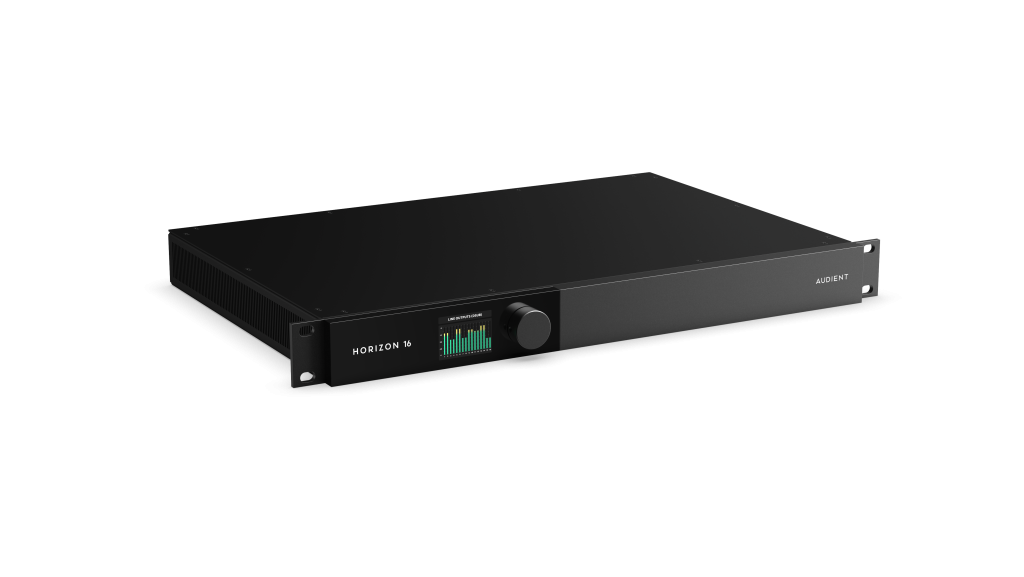

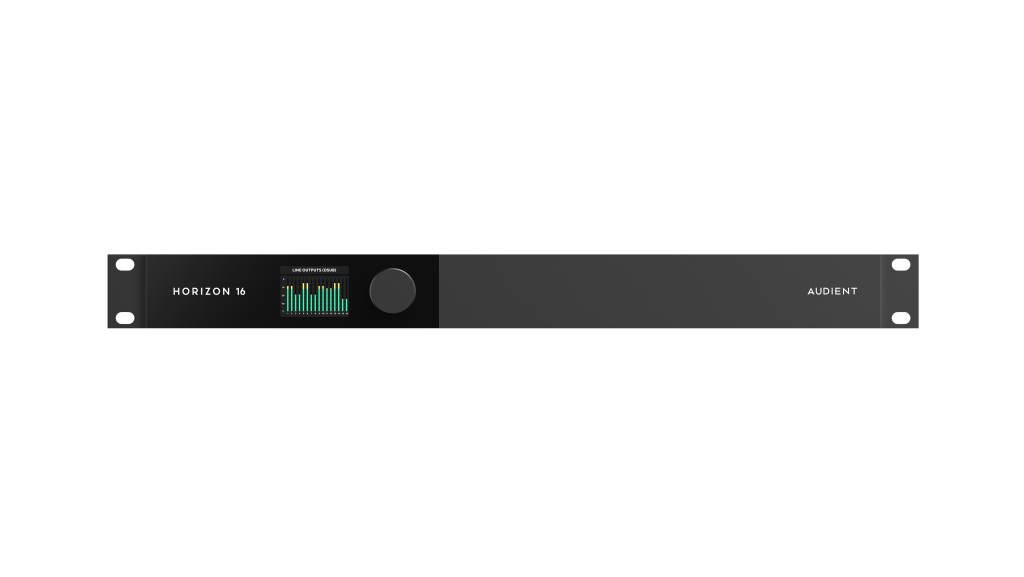

Audient Horizon 16 34/34 Thunderbolt Audio Interface

Welcome to the new standard.

The Horizon 16 is a 34-in / 34-out ThunderboltTM 3 audio interface and converter
built around 16 channels of line I/O over four DB25 connectors and 32-bit
conversion at 133dB dynamic range. With a dedicated stereo mix-bus path and
0.99ms round-trip latency, the 16 keeps an entire outboard rack patched and
printing to the DAW without sacrificing inputs — designed for the engineer
integrating analogue hardware or instruments into a hybrid mixing workflow.

Key Features
● 34-in / 34-out connectivity over ThunderboltTM 3

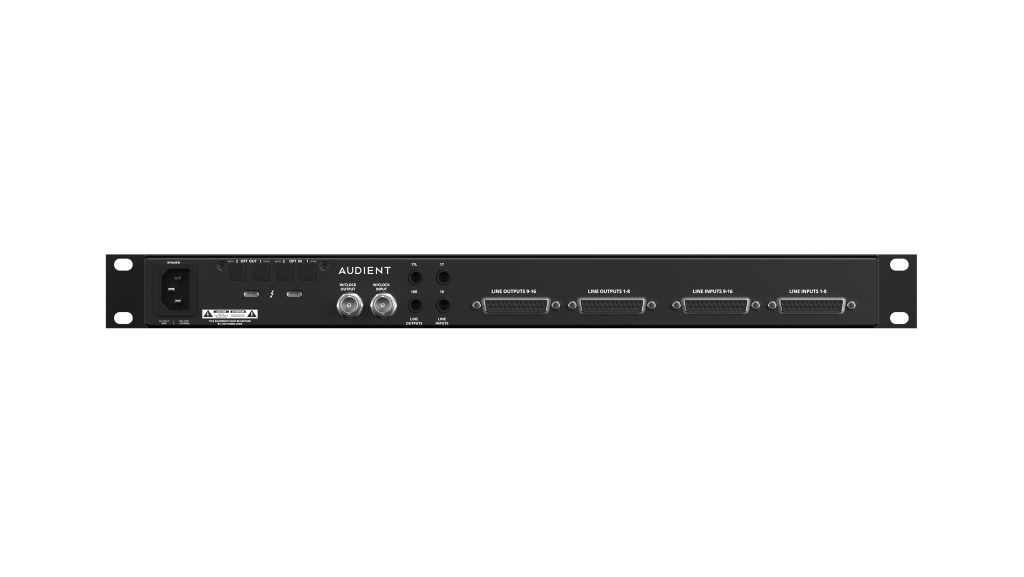

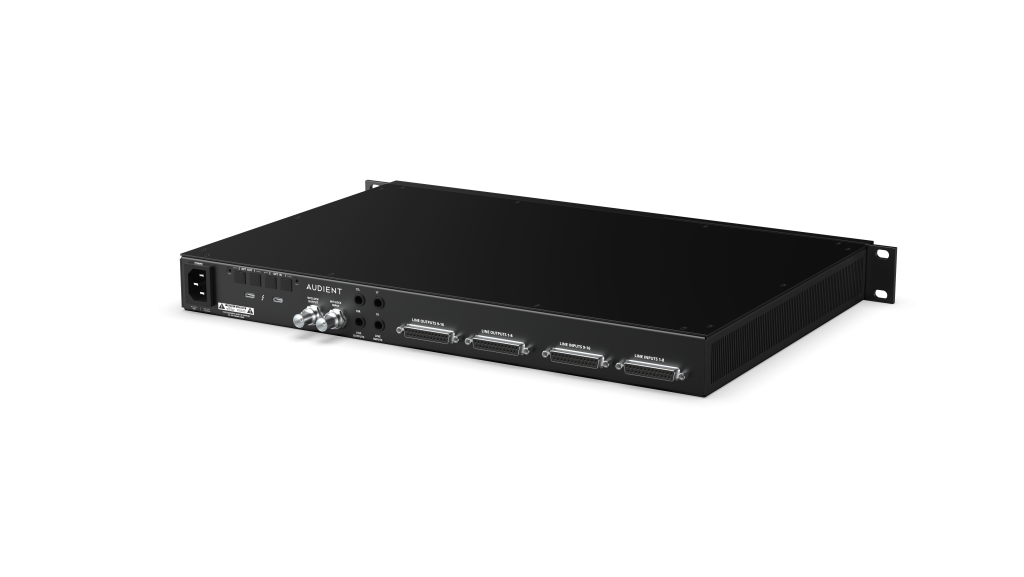

● 16-in / 16-out primary line I/O over four DB25 connectors
● Dedicated stereo mix-bus inputs for printing your master

● Dedicated stereo monitor outputs for independent reference listening
● 32-bit / 192kHz conversion, 133dB dynamic range
● 0.99ms round-trip latency (192kHz, 64-sample buffer)
● Dual ADAT I/O — 16 channels of digital expansion
● Horizon Control software — virtual patch bay, custom monitoring and extensive metering
● Advanced monitor control — mono, polarity, dim and reference level
● Selectable reference levels (+18dBu, +24dBu) and BNC word clock I/O
● Scalable architecture — daisy-chain up to four Horizon units on a single driver, with a system maximum of 200 × 200 I/O
● 1U all-metal chassis, three-year warranty
● macOS, up to 192kHz

Why the HORIZON 16?
The 16 is built to sit at the centre of a hybrid studio. Sixteen channels of line I/O
over four DB25 connectors keep a full rack of compressors, EQs and a summing
box permanently patched, while a dedicated stereo mix-bus path lets you print
your master back to the DAW without unplugging a thing. With 32-bit conversion
at 133dB dynamic range your outboard returns exactly as it left, uncoloured, and
0.99ms round-trip latency keeps native plugins lag-free. Horizon Control handles
routing, monitoring and metering from one panel — and when a session outgrows
a single unit, you can daisy-chain up to four for 200 in and 200 out on one driver.

Welcome to the new standard.
