KEY POINTS
- 2 x 8” (20cm) woofers with Slatefiber cone made in France
- 200 W RMS amplifier
- Sound neutrality, precise control of bass equalisation
- Compact design, optimal integration
- Multiple settings: low-pass crossover, volume, Footswitch input, etc.
- LFE, left and right inputs / left and right outputs
- Reproduction of sonic micro-details; precise adjustment of signal compression

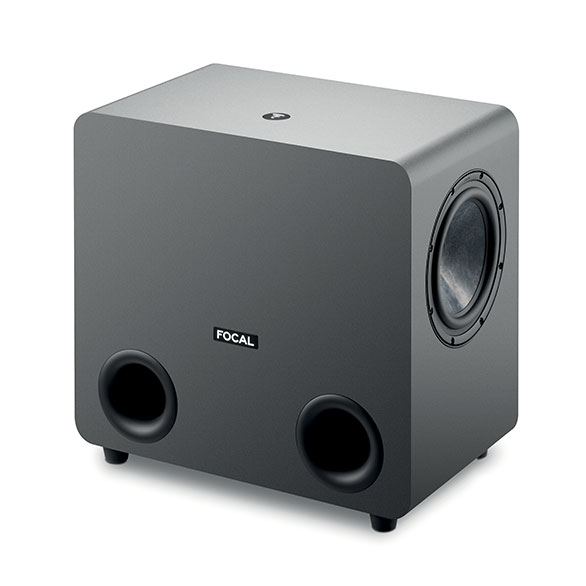

Sub One is a subwoofer composed of two 8" (20cm) Slatefiber cone woofers, manufactured in France by Focal.
With a total RMS power of 200W, it covers a frequency band from 32Hz to 120Hz.
Sub One offers great dynamics whilst maintaining low distortion.

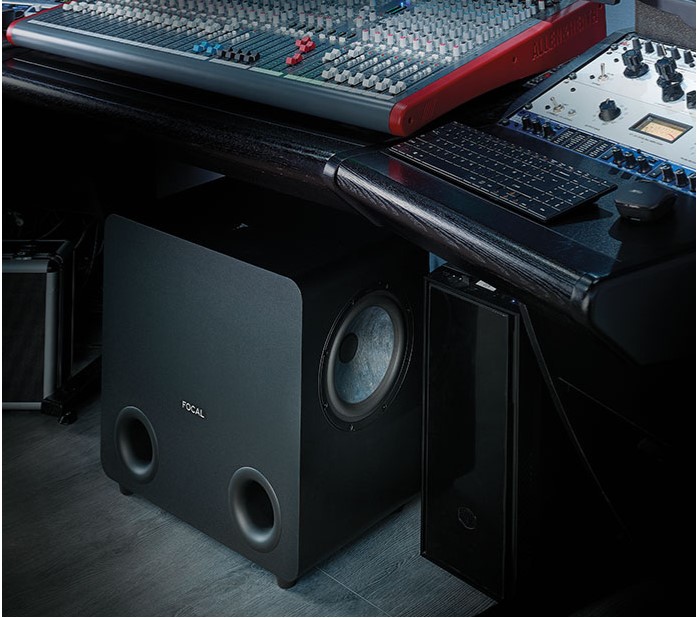

Designed with a focus on its width and front vents, Sub One integrates easily into a room, along a wall or under a desk. Number of available settings: fully adjustable low-pass crossover, volume, phase and polarity switch
Footswitch input for bypass Output to link several subwoofers LFE, left and right inputs, left and right outputs.
Low frequency management system for optimum monitor integration
Two 8" (20cm) Slatefiber cones made in France.
Sound neutrality, precise bass control 200W RMS amplifier
Large front vents, stable tonal balance and optimum integration Long excursion, high efficiency subwoofer. Reproduction of sonic micro-details for precise adjustment of signal compression
Type Sub One Frequency response (+/-3dB) 32Hz – 120Hz Maximum SPL 114dB SPL (peak @ 1m)

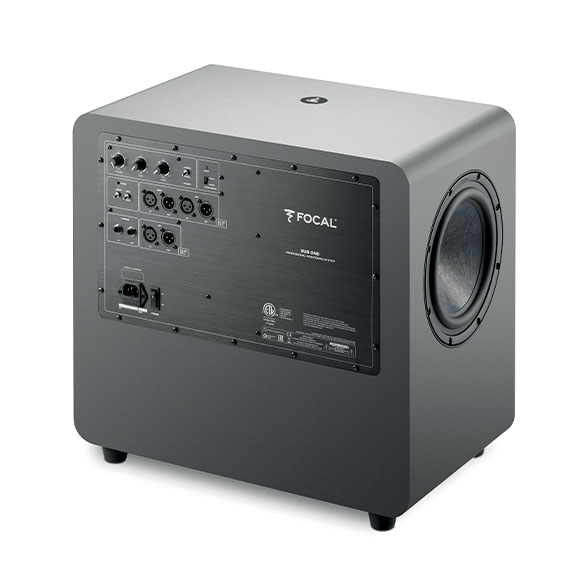

Inputs Left, Right, LFE Electronically balanced / 110kOhms 3-point female XLR
Variable Outputs (to satellites) Left + Right 3-point male XLR in parallel on inputs
Amplification 2 x 100W RMS, D-class Internal signal processing and functions Left + Right mono summation 60Hz or 90Hz high-pass crossover
Adjustable low-pass crossover, 24dB/octave Phase adjustment Polarity
User controls Subwoofer level adjustment (sensitivity) Low-pass crossover cut-off frequency adjustment Phase adjustment Polarity inverter
External mute (controlled by a pedal)
Indicators (LED) Power Defeat Power supply Universal detachable IEC inlet power cord
Subwoofer 2 x 8" (20cm) long-excursion Focal speaker drivers with “Slatefiber” cone
Construction 7/8" (22mm) MDF panel with internal braces
Finish Dark grey vinyl
Dimensions (HxWxD) 183/4"x113/4"x193/4"(475x310x520mm)
Weight 40.8lbs (18.5kg)
Accessories included: Protection grille
